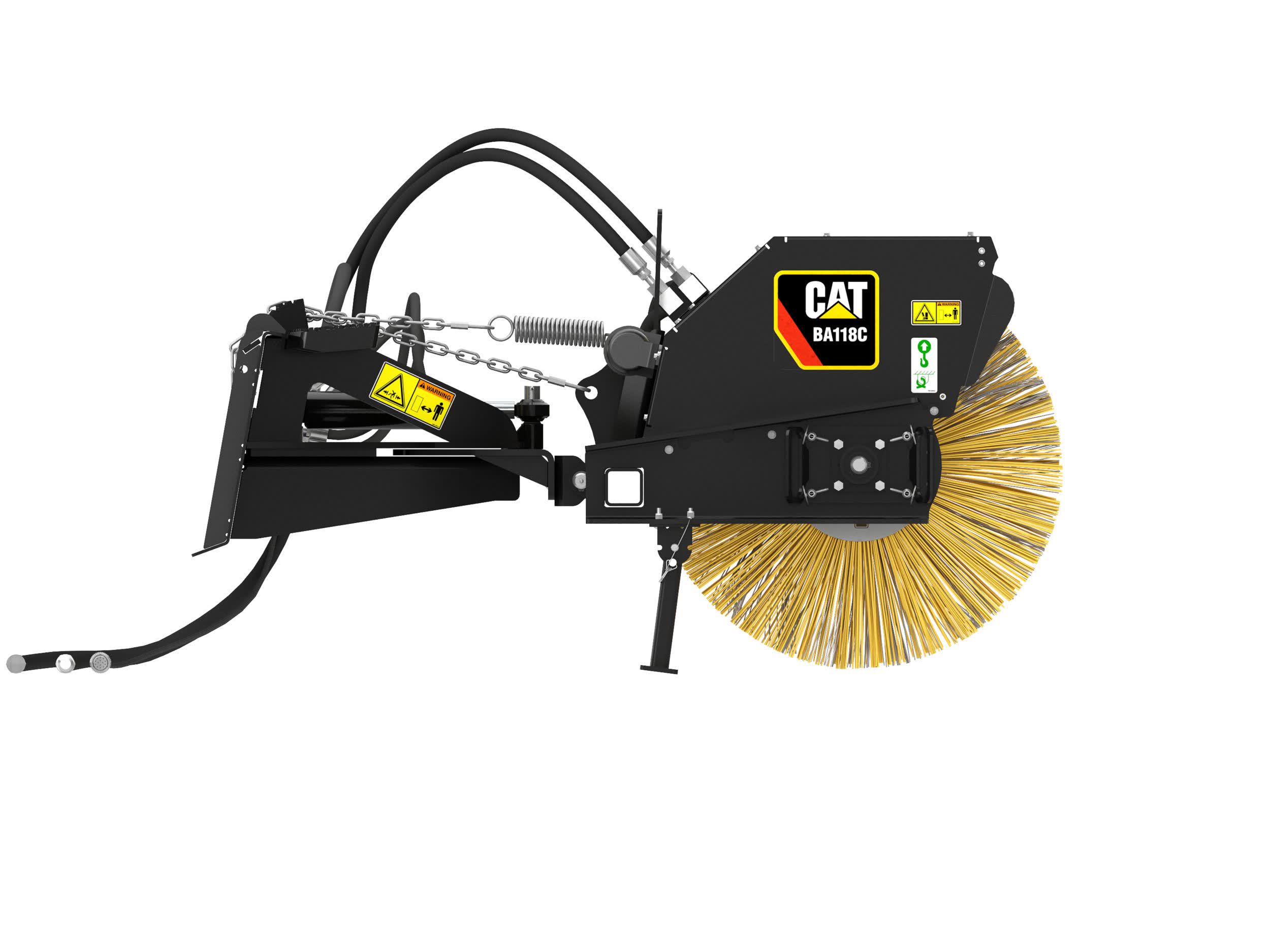

448-5670: BA118C Hydraulic
Specification
|
Conditions : |
New and Genuine |
|
Packaging Regulation : |
Wooden box |
|
Shipping Time: |
3~10 days |
|
Delivery time : |
7~14 days(Not included in the shipping time) |
How do you order?
A&S makes ordering GET Parts easy. Simply send a mail to Us. Instead of searching online and guessing which parts you need, our team will make sure you get the correct parts. We process and deliver your order fast, and always at a competitive price. Enjoy 5-star service!
1.IDENTIFY
Determine the parts you need. To ensure the correct parts are quoted, it's best to have the machine make and model, along with part numbers and photos of the nameplate if possible. Our team of professionals are here to help ensure you get the correct parts that fit and work the first time. Our sales team can also survey and help identify the parts you may need. Please email us to get started!
2.ORDER
Our professional internal sales teams and strong supply chain system will assist you to identify the right parts, and can recommend the most cost-effective solution for you. Our team of professionals will process your order, and ensure your order is correct the first time. With over 15 years in the business, we remove the guesswork and always deliver.
3.DELIVER
We'll ship or deliver your products as required, to your nominated location. If you're also located elsewhere, we'll identify the best shipping options for both price and delivery time. Email us now!
| Name | Value | UOM |
|---|---|---|
| Overall Width | 2637 mm | metric |
| Overall Width | 104 in | us |
| Sweeping Width | 83 in | us |
| Sweeping Width | 2119 mm | metric |
| Brush Diameter | 32 in | us |
| Brush Diameter | 815 mm | metric |
| Required Hydraulics | Standard Flow | |
| Height | 918 mm | metric |
| Height | 36 in | us |
| Length | 1741 mm | metric |
| Length | 69 in | us |
| Weight | 955 lb | us |
| Weight | 433 kg | metric |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) | |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) | |
| Motor Displacement | 405 cm3/rev | metric |
| Motor Displacement | 25 in3/rev | us |
| Brush Speed at Maximum Flow | 199 rpm | |
| Sweeping Width - Angled (± 30 Degrees) | 1849 mm | metric |
| Sweeping Width - Angled (± 30 Degrees) | 73 in | us |
| Overall Width - Angled (± 30 Degrees) | 2508 mm | metric |
| Overall Width - Angled (± 30 Degrees) | 99 in | us |
| Drive Method | Direct Drive | |
| Interface Type | Skid Steer Coupler | |
| Optional Hood Extension | 18 kg | metric |
| Optional Hood Extension | 40 lb | us |

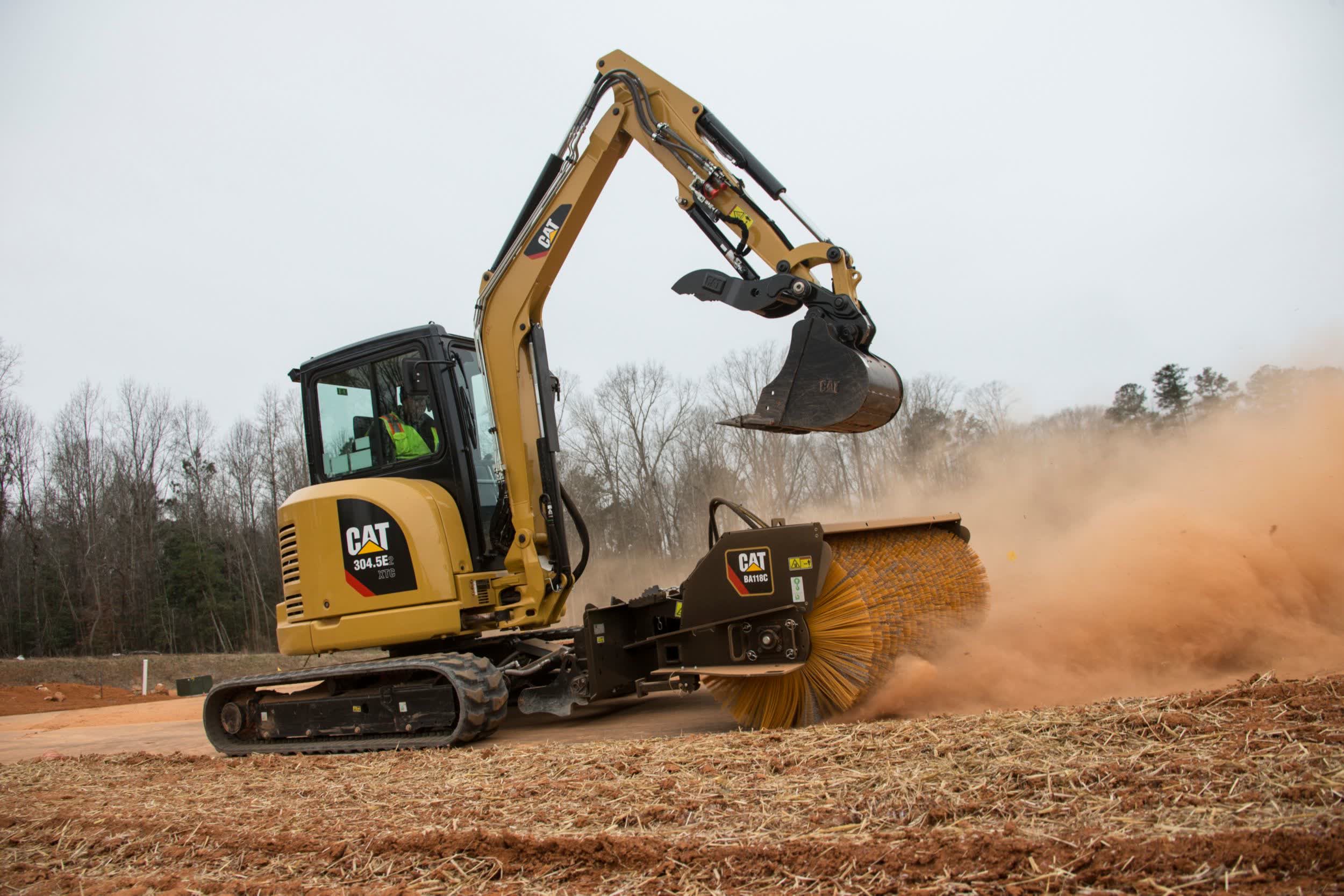

Hydraulic and Manual Cat? Angle Brooms for Skid Steer Loaders, Compact Track Loaders, Backhoe Loaders, Compact Wheel Loaders and Small Wheel Loaders are ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.
